Pressing Jaws & Rings Selection Chart for (100-B, RP 200-B, RP 210-B, RP 240, RP 241).

Click on catalog number to acess ordering information.

;

COMPACT SERIES PRESS JAWS

RIDGID® Compact Series press jaws are 40% lighter and 33% smaller than Standard Series jaws, enabling them to fit into tight spaces. RIDGID Compact Series press jaws are only compatible with RIDGID Compact Series press tools (100-B, RP 200-B, RP 210-B, RP 240, RP 241).

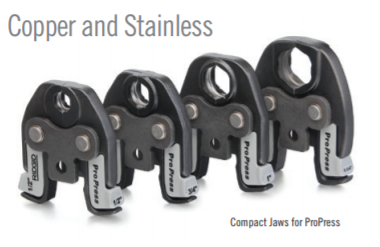

Compact Series Jaw Sets for
Viega ProPress® (Copper and Stainless)

CATALOG NUMBER

DESCRIPTION

WEIGHT LB.

STD. PACK

16958

½" Jaw for ProPress

2.50

16963

¾" Jaw for ProPress

2.50

16978

1" Jaw for ProPress

2.50

31228

1 1⁄4" Jaw for ProPres

2.50

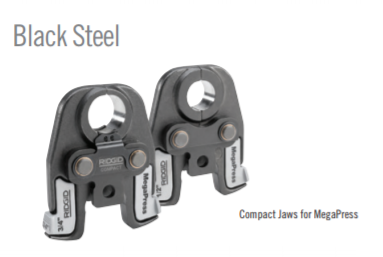

Compact Series Jaw Sets for
Viega MegaPress® (Black Steel)

CATALOG NUMBER

DESCRIPTION

WEIGHT LB.

STD. PACK

48433

½" Jaw for MegaPress

3.00

48438

¾" Jaw for ProPress

3.20

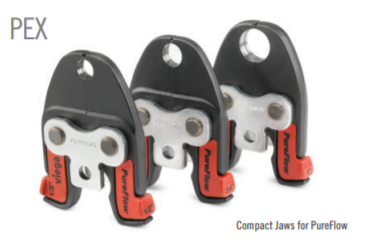

Compact Series Jaw Sets for
Viega PureFlow™ (PEX)

CATALOG NUMBER

DESCRIPTION

WEIGHT LB.

STD. PACK

17003

3 3⁄8" Jaw for PureFlow

2.50

17008

½” Jaw for PureFlow

2.50

19813

5⁄8" Jaw for PureFlow

2.50

17013

¾" Jaw for PureFlow

2.50

17018

1" Jaw for PureFlow

2.50

22683

1¼" Jaw for PureFlow

2.50

22688

1½" Jaw for PureFlow

2.50

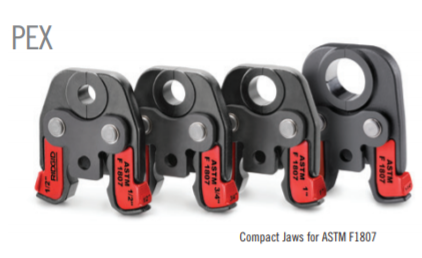

Compact Series Jaw Sets
for ASTM F1807 (PEX)

CATALOG NUMBER

DESCRIPTION

WEIGHT LB.

STD. PACK

22958

½" Jaw for ASTM F1807

2.50

22968

¾” Jaw for ASTM F1807

2.50

22973

1" Jaw for ASTM F1807

2.50

22978

1 ¼" Jaw for ASTM F1807

2.50

PRESS RINGS

Kits

CATALOG
N0.

MODEL
NO.

DESCRIPTION

WEIGHT LB.

STD.
PACK

27423

V1/C1

V1 Kit, 1⁄2", 3⁄4", 1", 11⁄4" Ring

10.8

27428

V2 Kit, 11⁄2", 2" Ring

13.60

28043

C1 Kit, 1⁄2", 3⁄4", 1", 11⁄4" Ring

8.10

28048

V1/C1

V1/C1 Combo Kit, 1⁄2", 3⁄4", 1", 11⁄4" Ring

12.90

RINGS

CATALOG
N0.

MODEL
NO.

DESCRIPTION

WEIGHT LB.

STD.
PACK

27998

V1/C1

1⁄2" Press Ring

0.5

28003

V1/C1

3⁄4" Press Ring

0.8

28008

V1/C1

1" Press Ring

1.00

28013

V1/C1

1 1⁄4" Press Ring

1.00

28018

V1/C1

1.80" Press Ring

1.50

28023

V1/C1

1 1⁄4" Press Ring

2.00

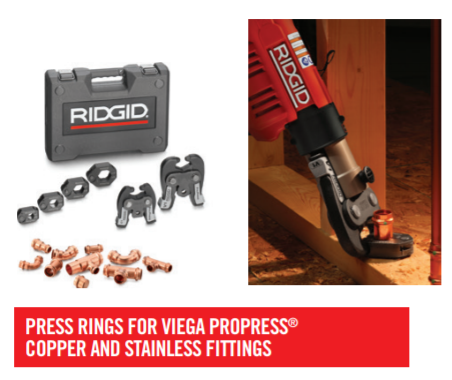

Press Rings for ProPress fittings permit access in tighter spaces and serve as an excellent complement to your RIDGID® jaw sets. The swivel actuator allows a press tool to be placed almost 90 degrees in either direction to the tube being pressed!

SPECIFICATIONS

ProPress Rings are Available in 1⁄2" to 2" Capacity.

V1 and V2 Kits are Designed for RIDGID Standard Press Tools.

C1 Compact Kits are Designed for RIDGID Compact Press Tools.

Standard Kit Includes: Press Rings, Actuator and Carrying Case.

COMPATIBLE WITH

ProPress System (Copper and Stainless steel 1⁄2" to 2")

Actuators

CATALOG
N0.

MODEL
NO.

DESCRIPTION

WEIGHT LB.

STD.
PACK

28033

V1 Actuator for 1⁄2" - 11⁄4"

4.90

21878

V2 Actuator for 1 1⁄2" - 2"

4.8

26163

C1 Actuator for 1⁄2" - 1 1⁄4"

2.10

Accessories

CATALOG
N0.

MODEL
NO.

DESCRIPTION

WEIGHT LB.

STD.
PACK

28028

V1/C1

Carrying Case #1 for 1⁄2" - 11⁄4"

3.00

28038

Carrying Case #2 for 11⁄2" - 2"

3.00

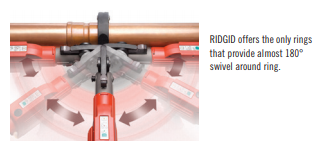

The patented XL-C/S Press Rings and V2 Actuator give contractors the ability to press copper and steel connections up to 4". The ball-tip V2 Actuator swivels nearly 180° with the XL-C/S Press Rings, allowing increased accessibility when making connections on ProPress XL-C and XL-S fittings. These rings work with all RIDGID Standard Series Pressing Tools to make connections on 2½" to 4" copper or stainless steel tubes (320-E, CT-400, RP 330-B, RP 330-C or RP 340).
